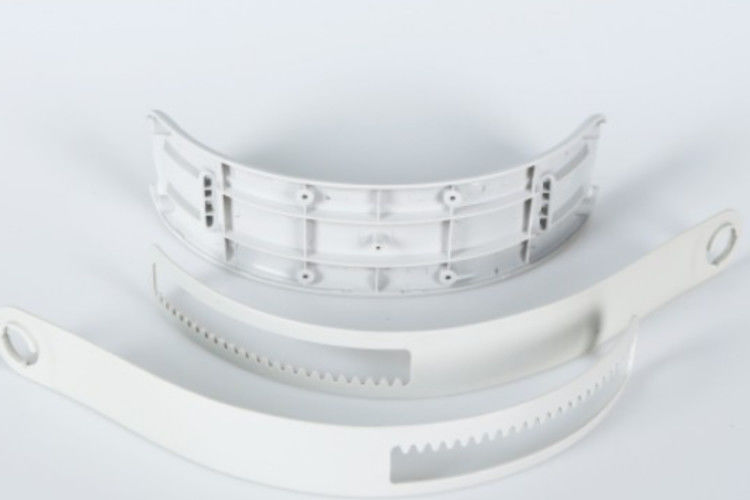

Medical Device Components Vacuum Casting Injection Molds and Casings Using Polypropylene PA6

Product Details

Place of Origin: China

Brand Name: JIA SHAN

Certification: ISO9001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 8

Price: As drawing

Delivery Time: 1-5 weeks

Payment Terms: T/T, D/P, Western Union

Supply Ability: Batch orders and sample orders are available

Get Best Price
Highlight:
Surface Treatment:
Anodizing/Painting/Sandblasting/Brushing/ Laser
Feature:
High Precision
Material:
Plastic PE,PP,PS,PVC,PC,PET,Nylon (PA6, PA66), PEEK,ABS
Durability:
Long-lasting
Color:
Customization
Type:
Heat Exchange Equipment
Application:
Machinery
Finish:
Polished Is Available
Size:
Customized
Tolerance:
ISO2768M ISO2768C
Port:
Shenzhen
MOQ:
1
Drawing Format:
3D:STP,STEP,IGS,PRT 2D:DWG,DXF,PDF
Quality Control:
100% Inspection Berore Shipment
Surface Treatment:
Anodizing/Painting/Sandblasting/Brushing/ Laser
Feature:
High Precision
Material:
Plastic PE,PP,PS,PVC,PC,PET,Nylon (PA6, PA66), PEEK,ABS
Durability:
Long-lasting
Color:
Customization
Type:
Heat Exchange Equipment
Application:
Machinery
Finish:
Polished Is Available
Size:
Customized
Tolerance:
ISO2768M ISO2768C
Port:
Shenzhen
MOQ:
1
Drawing Format:
3D:STP,STEP,IGS,PRT 2D:DWG,DXF,PDF
Quality Control:
100% Inspection Berore Shipment
Medical Device Components Vacuum Casting Injection Molds and Casings Using Polypropylene PA6
Medical Device Components Vacuum Casting Injection Molds and Casings Using Polypropylene PA6
Product Specifications
Attribute Value
Surface Treatment Anodizing/Painting/Sandblasting/Brushing/Laser
Feature High Precision
Material Plastic PE, PP, PS, PVC, PC, PET, Nylon (PA6, PA66), PEEK, ABS
Durability Long-lasting
Color Customization
Type Heat Exchange Equipment
Application Machinery
Finish Polished is available
Size Customized
Tolerance ISO2768M ISO2768C
Port Shenzhen
MOQ 1
Drawing format 3D: STP, STEP, IGS, PRT 2D: DWG, DXF, PDF
Quality Control 100% Inspection Before Shipment
Medical Device Components Vacuum Casting Injection Molds and Casings Using Polypropylene PA6 0
Product Overview
Vacuum casting is an advanced manufacturing method for producing high-strength industrial components requiring precision and durability. Our process utilizes premium materials like PEEK (Polyetheretherketone) and Polyamide (Nylon) known for their exceptional mechanical properties, chemical resistance, and heat tolerance.
Material Advantages
  • PEEK: Offers high tensile strength, abrasion resistance, and performance under extreme temperatures - ideal for gears, bearings, and seals
  • Polyamide (PA6/PA66): Provides excellent wear resistance and impact strength - perfect for bearings and seals in demanding conditions
Vacuum Casting Process
Our process begins with a master model (3D printed or CNC machined) used to create a silicone mold. Liquid resin is injected under vacuum conditions, ensuring complete cavity filling and dimensional accuracy while eliminating air bubbles for high-precision components.
Key Benefits
  • Rapid prototyping and low-volume production capabilities
  • Cost-effective solution for small batch production
  • Superior surface finish and dimensional accuracy
  • Material versatility for diverse application requirements
Technical Specifications
Time frame Within 24 hr - 5 working days for up to 30-50 parts
Material choice Wide variety of materials available
Accuracy ±0.3% (with a lower limit of ±0.3 mm on dimensions <100 mm)
Minimum wall thickness 0.75 mm required, 1.5 mm recommended
Maximum part dimensions Limited by vacuum chamber size
Typical quantities Up to 50 parts per mold
Surface structure Gloss to Matt surface finish options
Polyurethane Material Properties
Our polyurethane materials offer exceptional mechanical properties with high plasticity. Available in various formulations including polyether-type, polyester-type, and polyurea-type, these materials can be customized for specific requirements in temperature resistance, surface texture, hardness, and transparency.
Material Applications
  • Flexible Polyurethane: Ideal for packaging, sound insulation, and filtration with superior stability and chemical resistance
  • Rigid Polyurethane: Perfect for construction and automotive applications with lightweight, thermal insulation properties
  • Polyurethane Elastomers: Excellent for medical and footwear industries with oil resistance and durability
