Product Details
Place of Origin: China
Brand Name: JIA SHAN
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: 0.05-0.12USD
Packaging Details: Plastic Bag+Chipboard Carton+Plywood Pallet Pallet with Belt&Plastic Film.
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: carbon steel, stainless steel,aluminum,titanium,nickel,alloy steel
Name: |

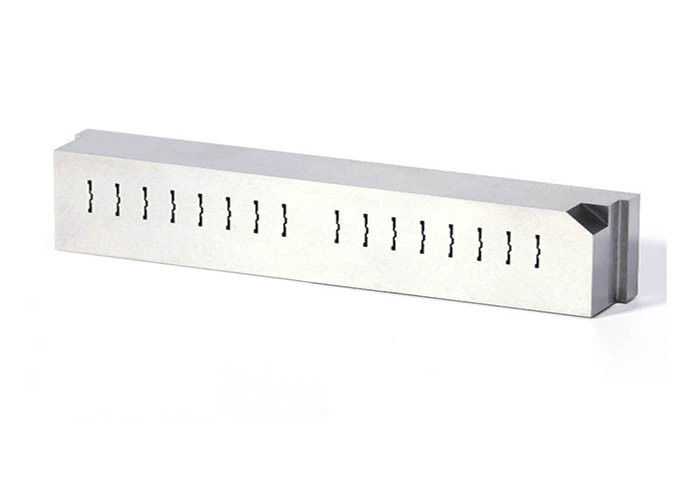

CNC Wire EDM Parts |
Material: |
Carbon Steel, Stainless Steel,aluminum,titanium,nickel,alloy Steel |
Hardness: |
HRC 58-62 |
Mainly Process: |
Centerless Grinding And Mitsubishi EDM |
Key Processes: |
PG Machining,WEDM, EDM, Surface Grinding |
Accuracy For Grinding: |
0.001mm |
Mian Machining: |
Grinding, EDM, WEDM And So On |
Tolerance: |
±0.005mm |
Edm Accurac: |
0.002m |
Quality Control: |
100% Inspection |
Oem Service: |
Yes |
Name: |
CNC Wire EDM Parts |
Material: |
Carbon Steel, Stainless Steel,aluminum,titanium,nickel,alloy Steel |
Hardness: |
HRC 58-62 |
Mainly Process: |
Centerless Grinding And Mitsubishi EDM |
Key Processes: |
PG Machining,WEDM, EDM, Surface Grinding |
Accuracy For Grinding: |
0.001mm |
Mian Machining: |
Grinding, EDM, WEDM And So On |
Tolerance: |
±0.005mm |
Edm Accurac: |
0.002m |
Quality Control: |
100% Inspection |
Oem Service: |
Yes |
Attribute | Value |
---|---|
Name | CNC wire EDM Parts |
Material | Carbon steel, stainless steel, aluminum, titanium, nickel, alloy steel |
Hardness | HRC 58-62 |
Main Process | Centerless Grinding And Mitsubishi EDM |
Key Processes | PG machining, WEDM, EDM, Surface Grinding |
Accuracy For Grinding | 0.001mm |
Tolerance | ±0.005mm |
EDM Accuracy | 0.002mm |
Quality Control | 100% inspection |
OEM Service | Yes |
Wire-cut discharge machining is a versatile precision machining process capable of manufacturing complex shapes and geometries. This process is particularly valuable in aerospace and medical industries where strict tolerances are required, and can be used for both prototype hand plates and mass-produced parts.
Electrical discharge wire cutting (wire EDM) is an electrothermal production process that removes material from conductive workpieces using electrical discharge. As an improvement on traditional EDM methods, it works with nearly all conductive materials and can produce complex designs with high precision.
Wire EDM is a non-contact manufacturing process that uses charged fine wires and dielectric fluids to shape metal parts. The process creates precise cuts by melting or vaporizing material rather than mechanical removal, enabling production of features unsuitable for traditional machining techniques.
Aluminum | Excellent thermal/electrical conductivity but requires careful handling during processing to avoid gelatinous buildup. |
Titanium | Well-suited for EDM machining with deionized water needed to control heat generation during processing. |
Steel | Produces significant heat during processing but excellent for complex features difficult with CNC machining. |
Brass | High tensile strength but requires slower cutting speeds due to softness. |
Besides Wire EDM, there are drilling EDM (using tubular electrodes for fine, deep holes) and sinker EDM (using shaped electrodes to create cavities).
Laser cutting uses a high-power thermal beam, while wire EDM uses electrical discharge between the wire and workpiece.
Deionized water serves as an effective coolant with low carbon properties, helping regulate dielectric temperature during processing.
