Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling

Product Details

Place of Origin: China

Brand Name: JIA SHAN

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: 0.05-0.12USD

Packaging Details: Plastic Bag+Chipboard Carton+Plywood Pallet Pallet with Belt&Plastic Film.

Delivery Time: 15days

Payment Terms: T/T, L/C

Supply Ability: carbon steel, stainless steel,aluminum,titanium,nickel,alloy steel

Get Best Price
Highlight:
Name:
CNC Wire EDM Parts
Material:
Carbon Steel, Stainless Steel,aluminum,titanium,nickel,alloy Steel
Hardness:
HRC 58-62
Mainly Process:
Centerless Grinding And Mitsubishi EDM
Key Processes:
PG Machining,WEDM, EDM, Surface Grinding
Accuracy For Grinding:
0.001mm
Mian Machining:
Grinding, EDM, WEDM And So On
Tolerance:
±0.005mm
Edm Accurac:
0.002m
Quality Control:
100% Inspection
Oem Service:
Yes
Name:
CNC Wire EDM Parts
Material:
Carbon Steel, Stainless Steel,aluminum,titanium,nickel,alloy Steel
Hardness:
HRC 58-62
Mainly Process:
Centerless Grinding And Mitsubishi EDM
Key Processes:
PG Machining,WEDM, EDM, Surface Grinding
Accuracy For Grinding:
0.001mm
Mian Machining:
Grinding, EDM, WEDM And So On
Tolerance:
±0.005mm
Edm Accurac:
0.002m
Quality Control:
100% Inspection
Oem Service:
Yes
Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling
Steel Alloys Yellow Zinc Turning CNC Machined Parts, Wire EDM Machine Tooling
Attribute Value
Name CNC wire EDM Parts
Material carbon steel, stainless steel, aluminum, titanium, nickel, alloy steel
Hardness HRC 58-62
Mainly Process Centerless Grinding And Mitsubishi EDM
Key Processes PG machining, WEDM, EDM, Surface Grinding
Accuracy For Grinding 0.001mm
Main Machining Grinding, EDM, WEDM and so on
Tolerance ±0.005mm
EDM Accuracy 0.002mm
Quality Control 100% inspection
OEM Service Yes

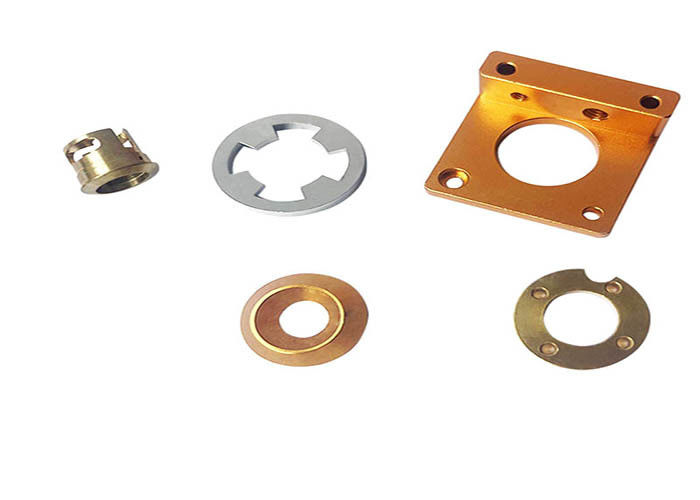

Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling 0
Description

Wire-cut discharge machining is a versatile precision machining process capable of manufacturing complex shapes and geometries. This process is particularly valuable in aerospace and medical industries where strict tolerances are required, and can be used for both prototype hand plates and mass-produced parts.

Electrical discharge wire cutting (wire EDM) is an electrothermal production process that removes material from conductive workpieces using electrical discharge. As an improvement on traditional EDM methods, it's compatible with nearly all conductive materials and can produce complex designs with high precision.

Wire cutting is a non-contact reduction manufacturing process that uses charged fine wires and dielectric fluids to shape metal parts. The process creates precise cuts by melting or vaporizing material rather than mechanical removal, enabling processing of features unsuitable for traditional techniques.

Applications

Wire-cut discharge machining serves numerous industries from prototyping to full production:

  • Aerospace Industry: Preferred for engine components, turbine blades, and landing gear parts requiring excellent surface finish and tight tolerances.
  • Medical Industry: Ideal for dental implants, syringe components, and other medical devices needing microscopic features without compromising structural integrity.
  • Automotive Industry: Used for complex automotive parts requiring precise holes, cavities, and custom geometries.
Material Specifications
Aluminum

Excellent thermal/electrical conductivity but requires careful processing to avoid gelatinous buildup during cutting.

Titanium

EDM machining effectively handles this alloy's viscosity, requiring deionized water to control processing heat.

Steel

Ideal for complex features but requires heat management during processing.

Brass

High tensile strength allows easy machining but requires slower cutting speeds due to softness.

Feature Advantages
  • High cutting precision typically eliminates need for secondary processing
  • Capable of manufacturing complex designs unachievable with traditional CNC machining
  • Single-stage processing leaves no burrs or deformations
  • Continuous, uninterrupted production process
  • Ideal for small parts and highly detailed cutting projects
Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling 1 Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling 2 Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling 3 Steel Alloys Yellow Zinc Turning Cnc Machined Parts , Wire Edm Machine Tooling 4
Frequently Asked Questions
What other types of EDM are available?

Besides Wire EDM, drilling EDM uses tubular electrodes for fine deep holes, while sinker EDM uses shaped conductive metal electrodes.

What is the difference between wire cutting and laser cutting?

Laser cutting uses high-power thermal beams, while wire EDM uses electrical discharge between the wire and workpiece.

Why use deionized water in wire-cut discharge machining?

Deionized water's low carbon properties make it an effective coolant for regulating dielectric temperature during processing.
